PRODUCT CATALOGUE / ENGINEERING REVIEW

Reference platforms, with the release boundary visible.

Select a family or model to review intended duty, draft configuration, standards pathway, required project inputs, open engineering checks, and the current downloadable technical specification.

01

ATX FAMILY / 4 REFERENCE MODELS

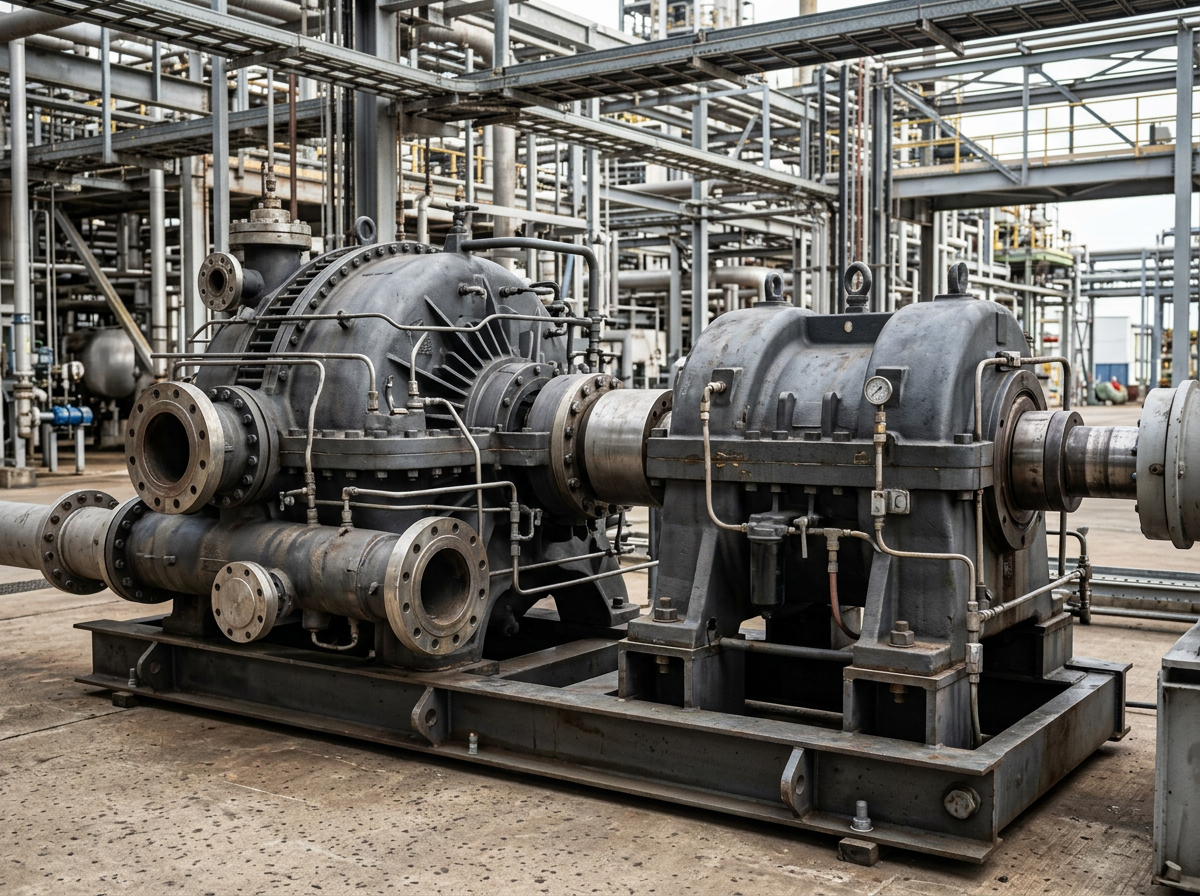

Axial Turboexpanders

Reference axial-flow platforms for refrigeration and energy-recovery studies. Final aerodynamics, shaftline, bearings, seals, controls, auxiliaries, and guarantees are selected from the approved duty.

FAMILY SELECTION GUIDE
02

CEX FAMILY / 4 REFERENCE MODELS

Cryogenic Expanders

Reference cold-end expansion platforms for cryogenic process studies. Minimum design temperature, compatibility, cleanliness, thermal contraction, containment, and cold-box interfaces require service-specific review.

FAMILY SELECTION GUIDE
03

AV FAMILY / 4 REFERENCE MODELS

Industrial Valves

Reference valve architectures for isolation, throttling, and severe-service studies. Size and class ranges are catalogue orientation only; pressure-temperature rating, materials, sealing, actuation, and test acceptance remain configuration-specific.

FAMILY SELECTION GUIDE
