AV / FAMILY SELECTION GUIDE
Industrial Valves
Reference valve architectures for isolation, throttling, and severe-service studies. Size and class ranges are catalogue orientation only; pressure-temperature rating, materials, sealing, actuation, and test acceptance remain configuration-specific.
SELECTION INPUTS
What engineering needs first
- 01Fluid, solids, corrosion, erosion, toxicity, and emissions requirements
- 02Design and operating pressure-temperature cases
- 03Isolation, throttling, emergency action, fail position, and leakage class
- 04Piping class, ends, bore, flow direction, actuation, and accessories
- 05Inspection, shell/seat testing, fire testing, NDE, documentation, and preservation
VERIFICATION OUTPUTS
What closes the release gate
- Pressure-temperature rating against selected material group
- Seat, packing, stem, trim, and body compatibility
- Actuator sizing and fail-action review
- Applicable valve-product and test standards confirmed by purchase scope
Standards named on this site are review pathways only. Applicability, edition, exceptions, and conformance must be confirmed in the purchase specification.

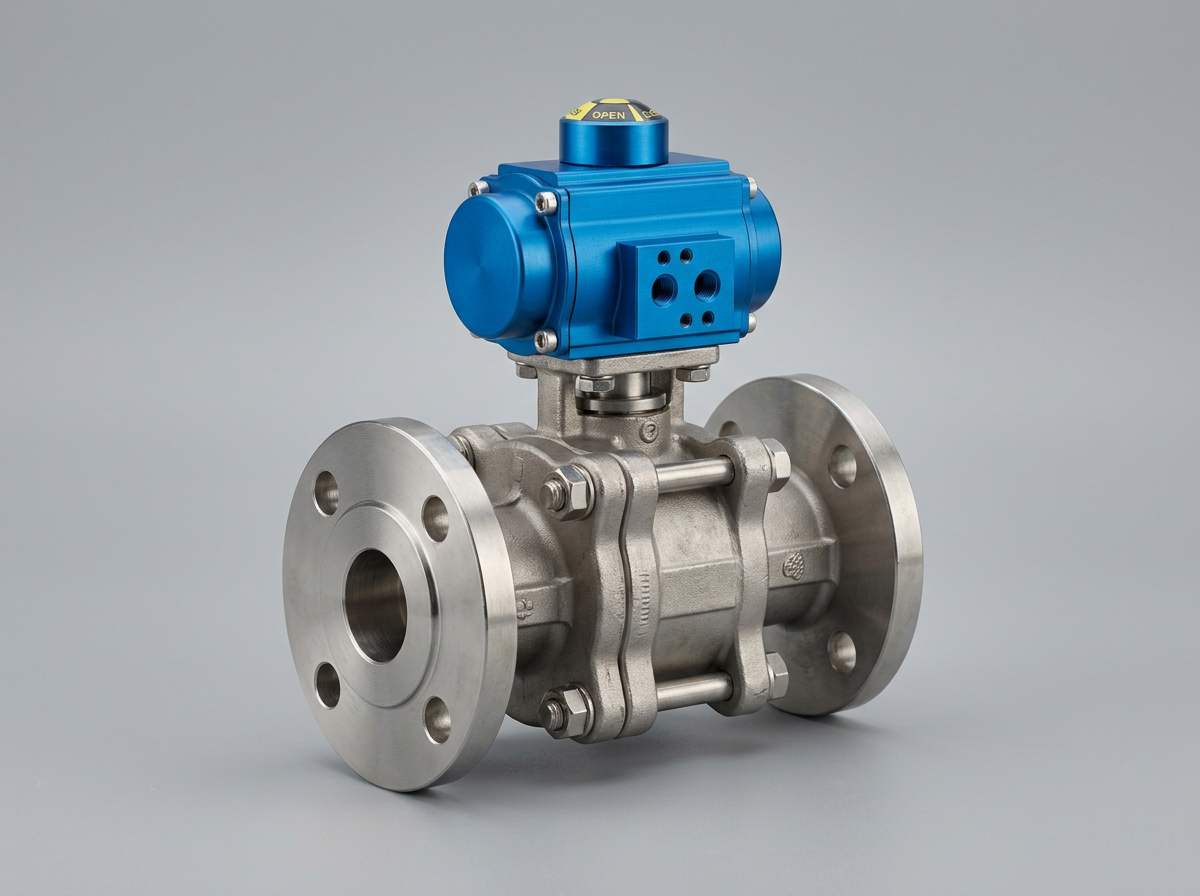

AV-150
AV-150 Floating Ball Valve
General-purpose isolation valve reference for process and utility lines.
OPEN TECHNICAL RECORD
AV-600
AV-600 Trunnion Ball Valve
High-pressure isolation platform with project-selected actuation and sealing.
OPEN TECHNICAL RECORD

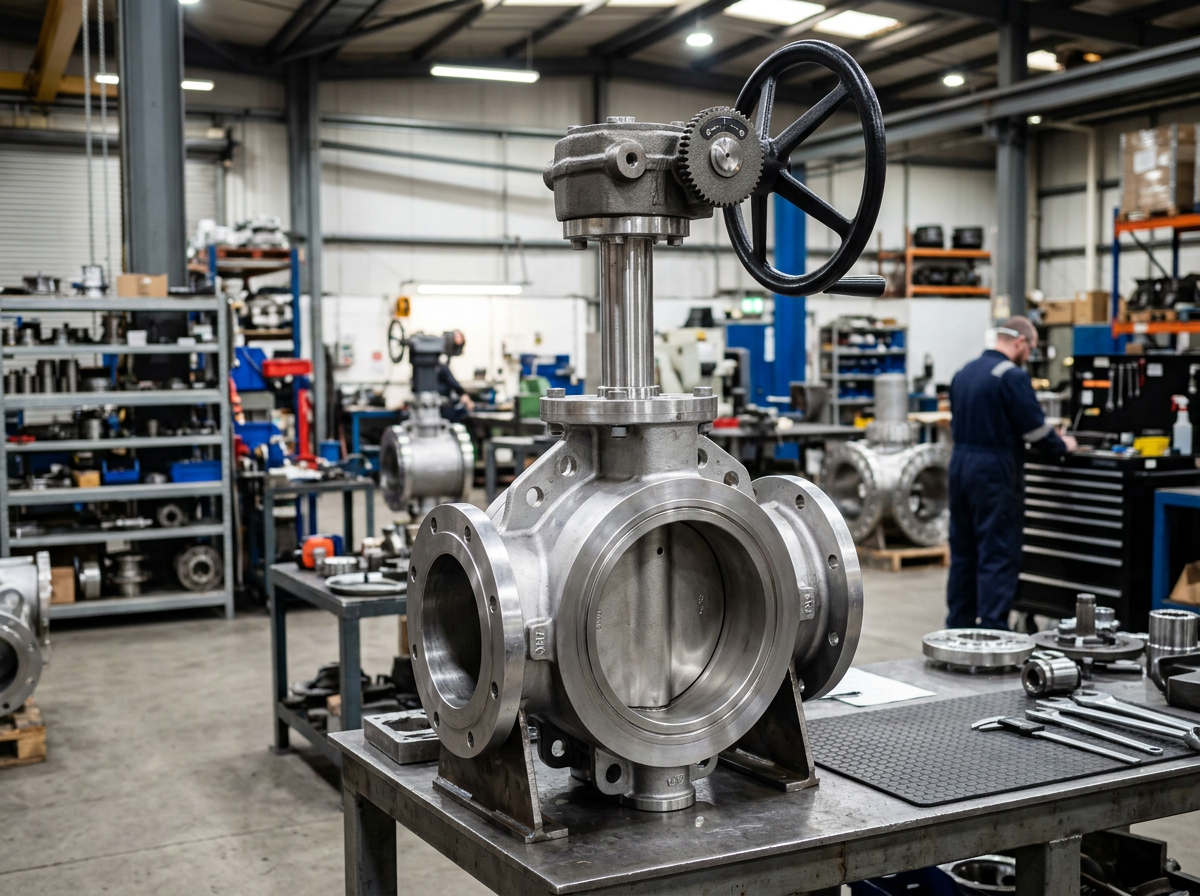

AV-900
AV-900 Triple-Offset Butterfly Valve
Metal-seated quarter-turn valve reference for larger-bore severe-service isolation.
OPEN TECHNICAL RECORD

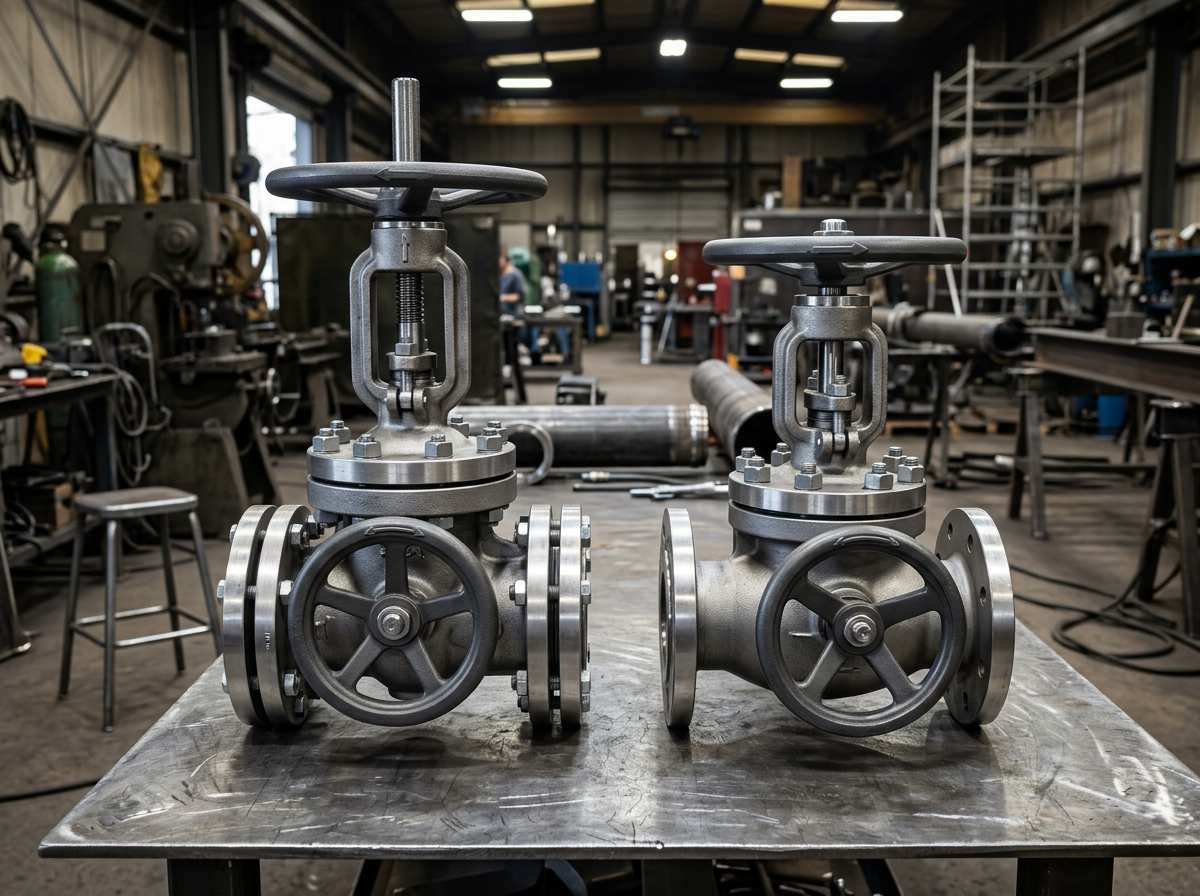

AV-300
AV-300 Gate and Globe Valve
Bolted-bonnet isolation and throttling reference for process line classes.
OPEN TECHNICAL RECORD
